Lift systems for every civil and industrial need

Construction of lifting systems for materials and people

Minilift Carg Srl, based in San Pietro Mosezzo, in the province of Novara, operates in the lifting systems sector, designing next-generation automated lifting systems to overcome architectural barriers in civil and industrial settings.

In addition to dumbwaiters and serving hatches, we also manufacture freight elevators, lifting platforms, and mini-elevators.

Montaviva

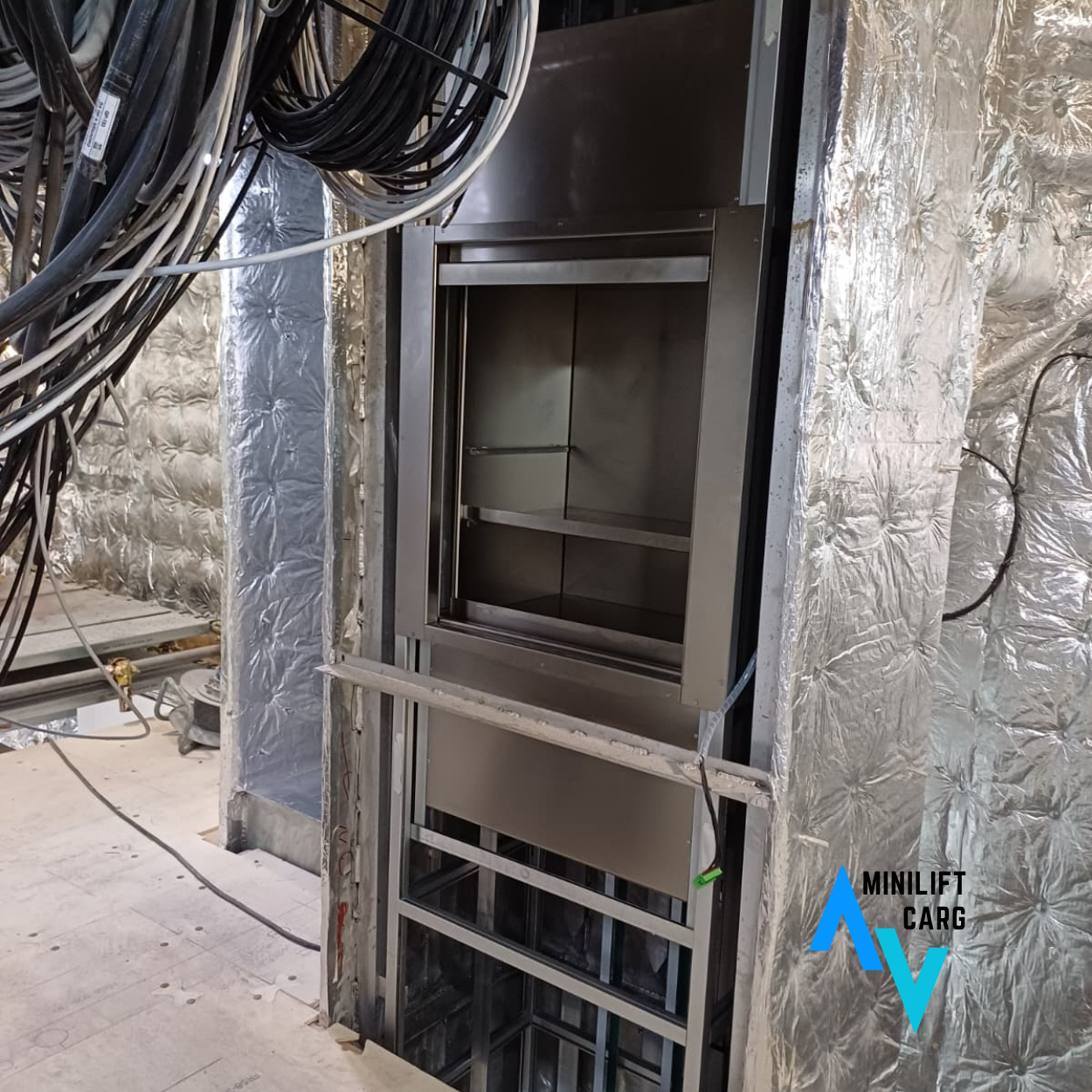

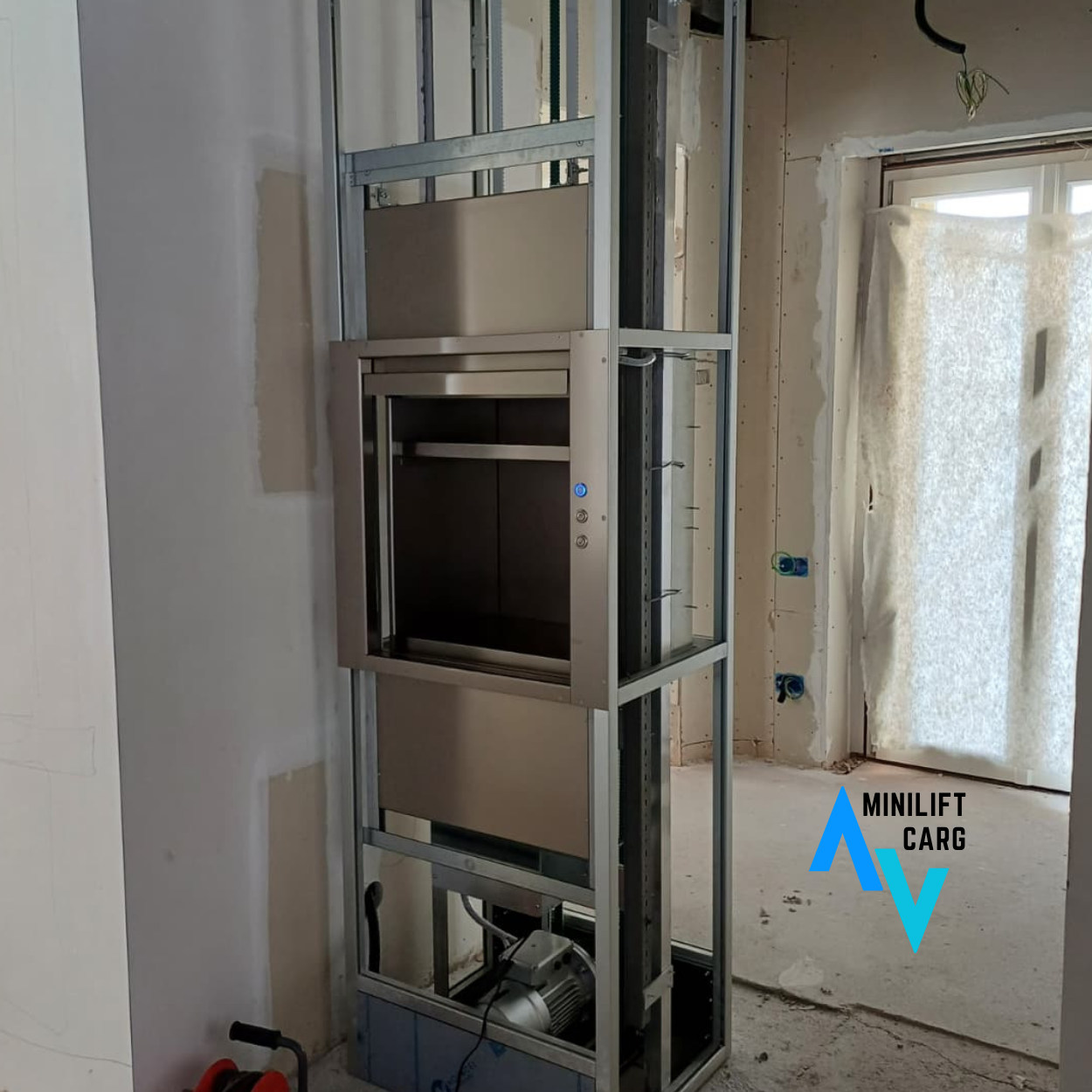

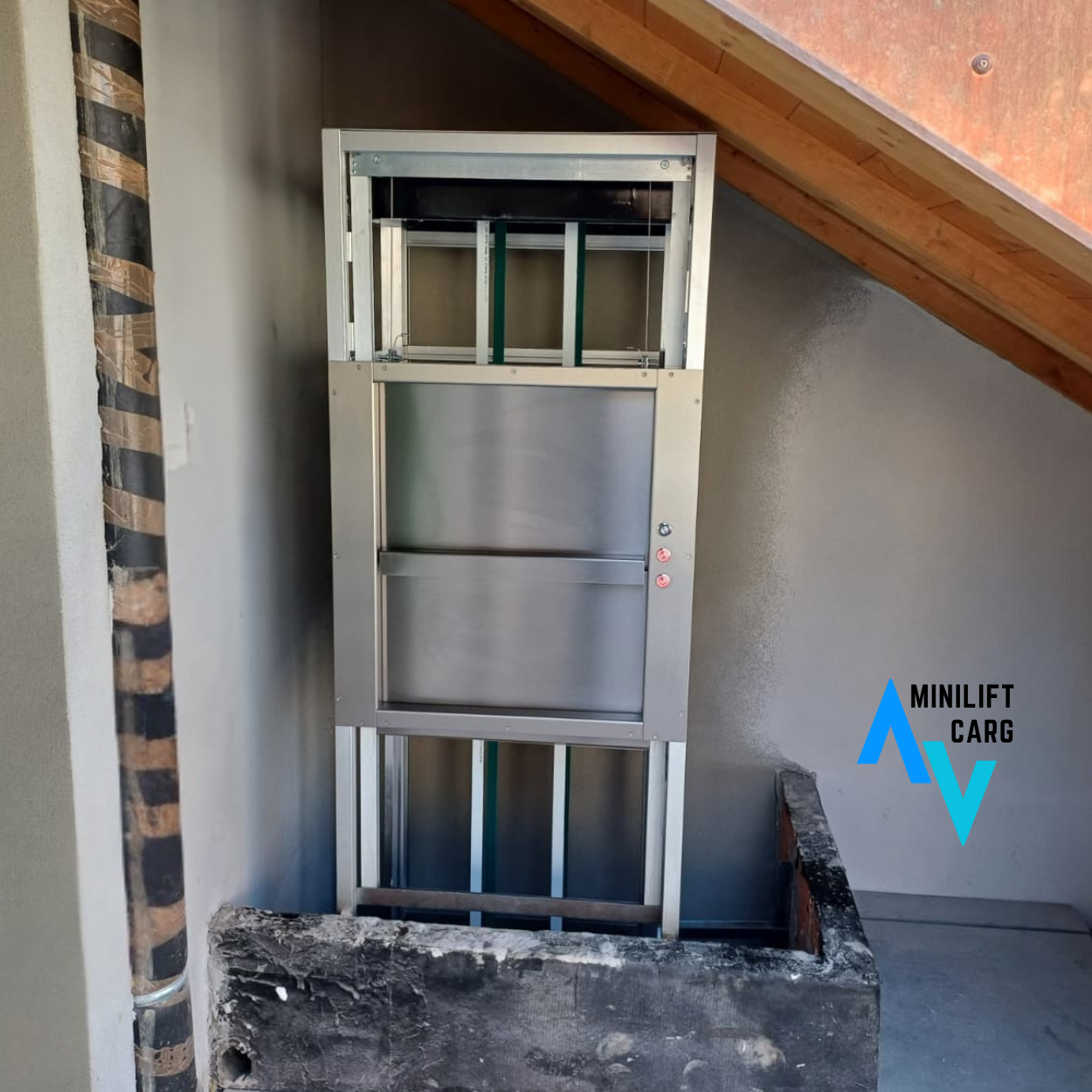

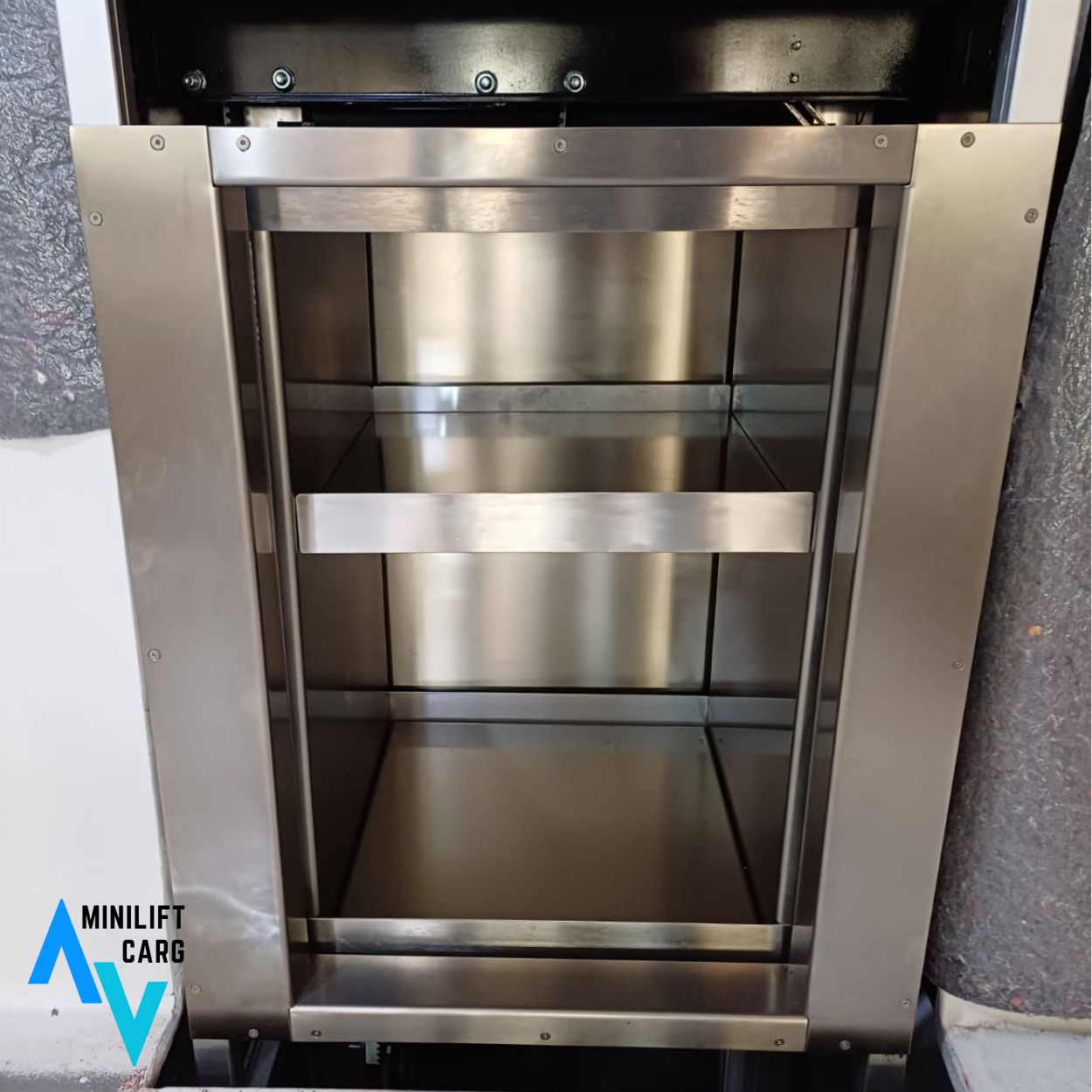

The dumbwaiter is a small goods lift for transporting beverages, food items, and their components. It can be custom-made, with an anodized aluminum load-bearing structure and stainless steel landing and cabin doors. Load capacities range from 24 kg to 150 kg. The landing doors can be double-sliding or swing. The lift is operated by an electric motor with a worm gear reducer, controlled by an inverter and PLC. For greater precision when stopping, the lift is designed with a slowdown mechanism that begins to slow the moving cabin 25 cm before the stop. The speed is 0.30 m/s, with a slowdown rate of 0.10 m/s, adjustable via inverter. The motor can be mounted either high or low, ensuring better adaptation to any environment. The control panel is internal to the structure. The push-button panel allows calls to be made from the landing itself, or commands to all other floors.

Goods lift

A freight elevator is a tool that improves work efficiency in companies. This lift allows you to easily reach the upper floors of a building, warehouse, or any industrial complex, lifting and transporting heavy loads quickly and safely. Freight elevators can be built with various features and functions. For this reason, before choosing the specifics, it is advisable to consult a specialist to determine the function it will perform.

The technology used for production is electric or hydraulic motors. The load capacities, from 100kg to 10,000kg, of some of our products can be manufactured and certified according to ATEX regulations.

Lifting platforms

The lifting platform is a mini lift used to transport one or more people with motor disabilities.

The lifting platforms offered by Minilift Carg can be custom-made to suit your needs. The speed is 0.15 m/s. The power supply is 230V/380V. The structure is load-bearing.

The installation is the ideal solution for private homes, condominiums, factories and shopping centres.
